Used for ditch cleaning and sloping grading. Double cylinder design and single cylinder design are both available.Product Specification:
Huitong Excavator Tilt Buckets are designed for ditch cleaning and sloping grading. Our tilting bucket can tilt 45 degrees in either side to increase productivity. And our tilting bucket also designed with double cylinders and with double cutting edges( Single cylinder design is also available). The space of bolts in cutting edges are 6 inch, which is the standard cutting edges for you can find spare cutting edges in local easily. All hoses are arranged well, the only thing you need to do is to install our tilting bucket with your spare hoses in excavator.
1. With 2 x 45 ° swivel angle and round vessel shape - ideal for Excavation, material installation and grave Broaching.
2. Selectively pivoting device with 2 or 1 hydraulic cylinder or with hydraulic rotary motor.
3. It has pressure-retaining valve for safety.
4. Stable, robust bucket design for long life.
5. Protection of outer weld by existing soil.
6. With lateral water drainage holes.
7. Double cutting edges: reducing the wear to the bottom of the bucket.
8. Cutting edge and side cutters are 400 HB steel. Robust, wear-resistant blades and side cutters.
9. Good Plane properties by smooth, stable base of 400 HB steel
10. Compact bucket shape for narrow trenches and for excavation along walls and houses.
11. All bucket profile in rigid version available.
Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Tilt Bucket.
|Material||Code||Related Chemical Composition||Hardness(HB)||Extension(%)||Drag and extension intensity (N/mm2)||Bend Intensity (N/mm2)|
|Chinese High-Strength alloy||NM360||0.2||0.3||1.3||0.02||0.006||360||16||1200||1020|

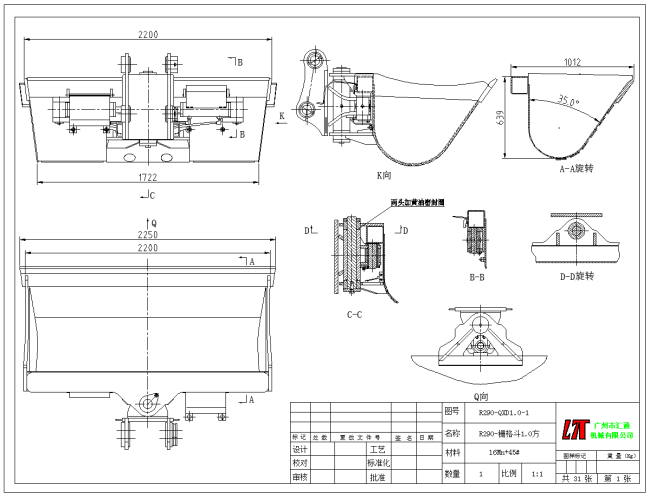

General Arrangement Drawing
Processing at Huitong Wrokshop
1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet
2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight
1. ARE YOU A FACTORY OR TRADING COMPANY?
We are manufacturer based in Guangzhou, China where near to Hongkong. We've been in the industry since 2011, and we've gained the export certification, which means we could export with lower cost. Feel free to let our sales know ahead, if you planed for paying a visit to our factory. Also, you can know more about Huitong at the About Page.
2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?
We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2011. And also, we've got an mature technical team ready to discuss your unique requirements with you.
3. IS YOUR DELIVERY ALWAYS ON TIME?
We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.
4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?
Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture. By the way, there are many products with fake CE Certification on the market, please be awared with that to avoid unnecessary problems.
5. HOW AM I START ORDERING?
Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
